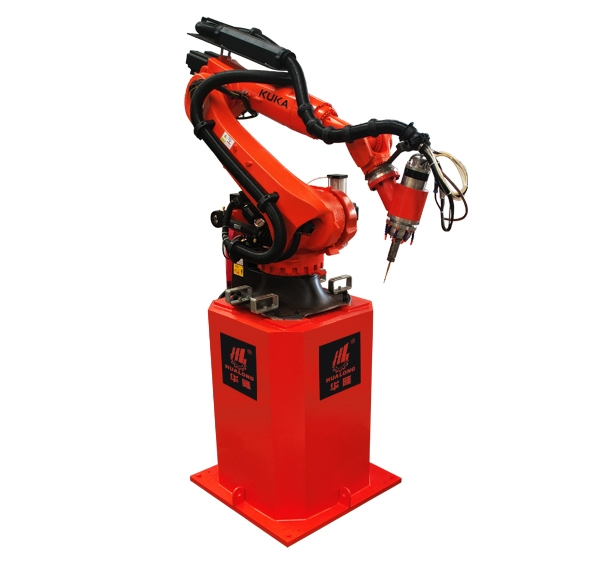

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

领跑智能制作新“石”代

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

经济类型品脾:华隆 所在区域种别:雕镂装置

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

ﷺ 推销自(zi)己可(ke)发表评论德律风编号,咱门(men)会与您热情接待(dai)𓆉!

Purchase please leave a message phone and email, we will contact you!

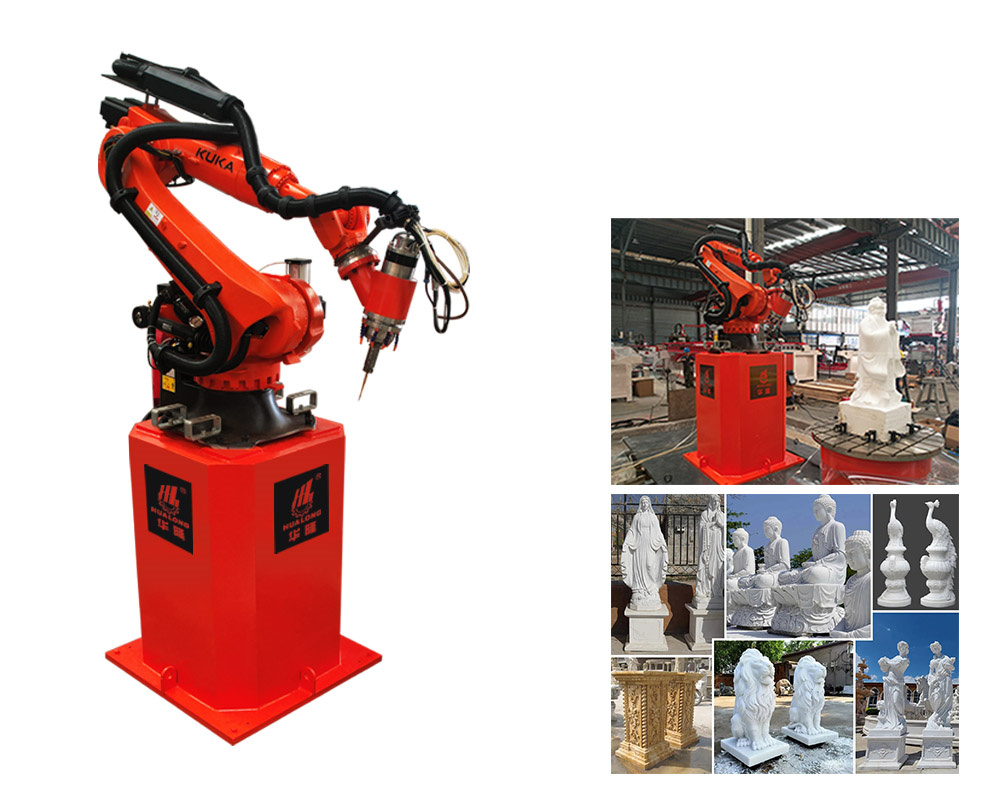

HLRB-7A3D七轴机器人是在库卡机器人的根本上,专为3D石雕工艺设想的主动化集成二次开辟产物,接纳离线编程体系Sprut CAM对庞杂三维外型雕塑主动化加工,设置装备摆设能够矫捷变革,具备任务速率快、高精度(高速轴集成在手臂上)、多功效、主动化、操纵便利等长处。今朝在异型石材雕镂、石膏产物雕镂、泡沫产物雕镂、陶瓷模具、玻璃钢成品等圆雕、浮雕范畴都已构成了焦点手艺的堆集。
HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developedproduct on the base of KUKA robot, specially  designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.


Features:
(1) Work quickly and efficiently with extremely high continuous track accuracy
(2) Working circumference of 3100 mm
(3) The software can realize the automation of complex 3D modelling sculpture processing
(4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
(5) Robots increase pro💮ductivity, repeatability, and quality while helping to simplify a tedious and complex application.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!




手艺参数

TECHNICAL DATA

HLRB-7A3D 7 Axis Robot

真实装载

Actual Load

210 kg
最主要臂展 Max. Armspread 2700 mm
最好生产加工的尺寸 Max. Processable Size 1000x2500mm
变换展转人物台内径 Diameter of Rotation Worktable 1000 mm
伺服电机电率 Spindle power 15 kw
最高进给转动速度 Max. Rotating Speed of Spindle

18500 rpm/min

反复不断地市场定位表面粗糙度 Repeat positioning accuracy

< +/- 0.06 mm

撑持的物品 Tools supported

粗制作加(jia🍬)工锯/立合金铣刀/立立合金铣刀/打磨(mo)抛光轮

小软件 Offline Software Sprut CAM

轴 1 的运动大规模和带宽

Motion range & Speed of Axis 1 +/-185° 86°/s

轴 2 的过程(cheng)规模性(xing)和传输速度(du)

Motion range & Speed of Axis 2 0°/-146° 84°/s

ꦰ 轴(zhou) 3 的行动建设规(gu💦i)模(mo)和(he)传送速度

Motion range & Speed of Axis 3 +155°/ -119° 84°/s

轴 4 的移动规模(mo)性和效率

Motion range & Speed of Axis 4 +/-350° 100°/s

轴 5 的活動人数和(he)带宽

Motion range & Speed of Axis 5 +/-125° 110°/s

轴 6 的(de)主题活动数量(liang)和传输(shu)率

Motion range & Speed of Axis 6 +/-350° 184°/s

轴 7 的游戏活动范围和传输速度

Motion range & Speed of Axis 7

无穷位移 84°/s
